0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length

0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length 0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length 0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length 0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length
YG-1 TOOL CO.
P01002
P01002
P01002
0.5110" - 0.6890" (Series 0)
Weight: 1 LBS
Brand: YG-1 TOOL CO.
$331.16
(33% off)
$221.88
each
3/31/3025
Add To My Favorites
Technical Details & Downloads

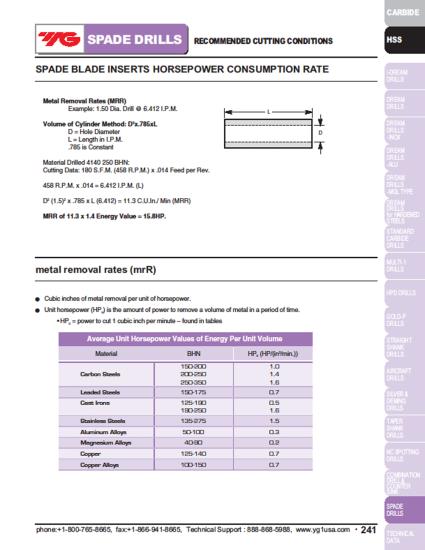

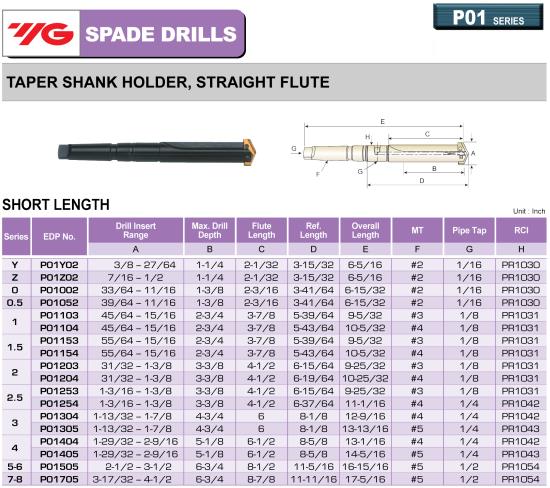

Technical/Extra Information Catalog Page Catalog Page
Product Description

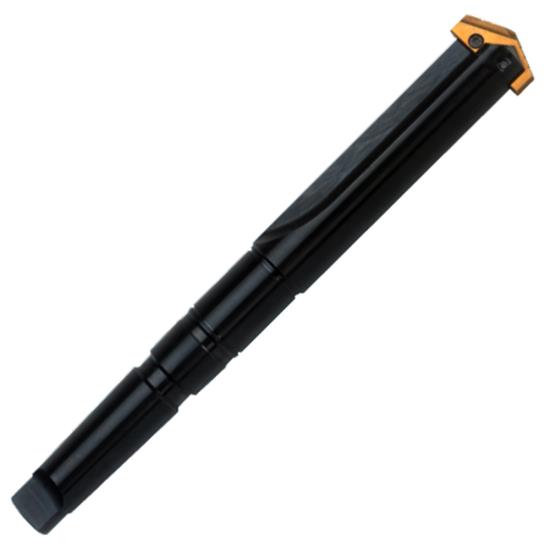

0.5110" - 0.6890" Insert Range, Series 0, Straight Flute Short Length Spade Drill Holder, Morse Taper #2 Shank, 1-3/8" Max Drilling Depth, 6-15/32" Overall Length

  • YG 2 Flute Exchangeable Tip Spade Drill Holders
  • Internal Coolant Supply
  • Straight Flutes
  • Morse Taper Shank

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
11
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
P01002
Length Of Flute
1.375"
Overall Length
6.469"
Shank Diameter
MT2
Country of Origin
Korea, Republic of
Series
Series 0
Style
Short Length
Size
0.5110" - 0.6890" (Series 0)
Shank Type
Morse Taper Shank
