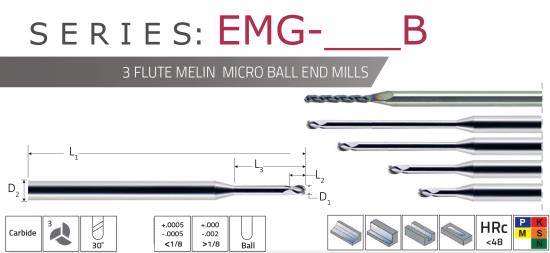

.093" Diameter Ball End Long/X-Long 3 Flute Carbide End Mill, 1.875" Reach , .139" LOC, 4" OAL
.093" Diameter Ball End Long/X-Long 3 Flute Carbide End Mill, 1.875" Reach , .139" LOC, 4" OAL
.093" Diameter Ball End Long/X-Long 3 Flute Carbide End Mill, 1.875" Reach , .139" LOC, 4" OAL
.093" Diameter Ball End Long/X-Long 3 Flute Carbide End Mill, 1.875" Reach , .139" LOC, 4" OAL
H0901
H0901
EMGN-.093-SF20-B
MADE IN THE USA
Weight: 0.035 LBS
Brand: MELIN TOOL CO.
$46.19
Available
Additional Product Details
Technical Details
- Manufacturer
- MELIN TOOL CO.
- Manufacturer Part Number
- H0901
- Tool Diameter
- 0.0930"
- Length Of Cut
- 0.1390"
- Overall Length
- 4.0000" 4"
- Shank Diameter
- 0.1250" 1/8"
- Length Below Shank
- 1.875"
- Radius Size
- Ball
- Corner Radius
- Ball
- Number Of Flutes
- 3
- Helix Angle
- 30°
- End Style
- Ball
- Tool Coating
- None
- Tool Substrate Material
- Carbide
- Primary Application
- General Purpose
- Inch Or Metric
- Inch
- Country of Origin
- U.S.A.
- Hand Helix Direction
- Right Hand
- Single Or Double End
- Single End
- Type Of End Mill
- Finisher
- Shank Type
- Plain Shank
