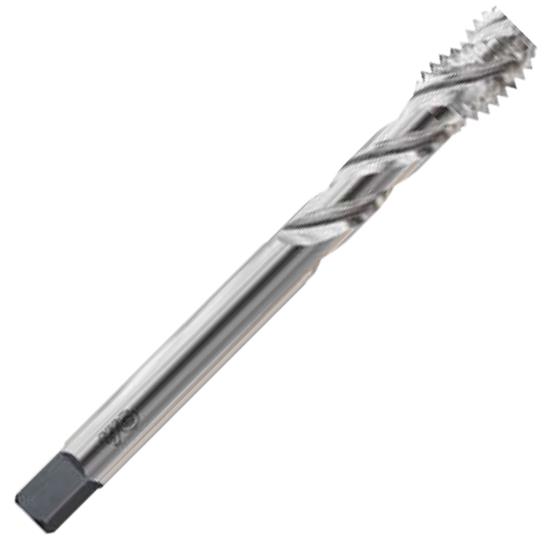

2-56 H2, 2 Flute, 45° Spiral Flute Modified Bottoming DIN Length-ANSI Shank CNC Tap, YG TAP GENERAL, HSS-E With Bright Finish For General Purpose

2-56 H2, 2 Flute, 45° Spiral Flute Modified Bottoming DIN Length-ANSI Shank CNC Tap, YG TAP GENERAL, HSS-E With Bright Finish For General Purpose 2-56 H2, 2 Flute, 45° Spiral Flute Modified Bottoming DIN Length-ANSI Shank CNC Tap, YG TAP GENERAL, HSS-E With Bright Finish For General Purpose 2-56 H2, 2 Flute, 45° Spiral Flute Modified Bottoming DIN Length-ANSI Shank CNC Tap, YG TAP GENERAL, HSS-E With Bright Finish For General Purpose
YG-1 TOOL CO.
G0082
G0082
G0082
2-56 0.0860 DIN LENGTH
Weight: 0.01 LBS
Brand: YG-1 TOOL CO.
$22.99
(30% off)
$16.13
each
Add To My Favorites
Technical Details & Downloads

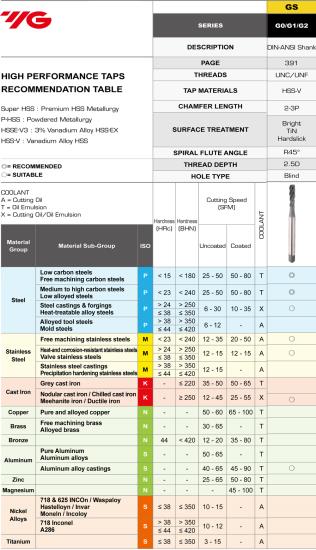

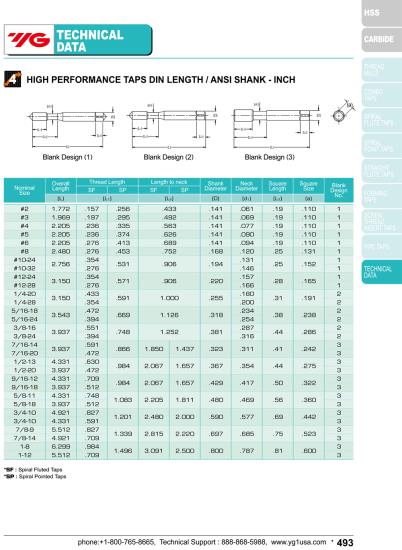

Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Yg Tap General Series G0: Cnc Tap For General Purpose Use. Taps Are Produced From Premium Hss-E (5% Cobalt Hss) And Come With Bright Finish. Taps Are Right Hand Cut, Right Hand Thread With 45° Right Hand Spiral, Spiral Flute Modified Bottoming Style Taps With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 2.5Xd. Din Length Uscti Shank Cnc Tap With No Coolant Hole.

  • YG-1 YG TAP GENERAL Series G0: CNC Tap For General Purpose Use
  • Made from Premium HSS-E (5% Cobalt HSS) With Bright Finish
  • Right Hand Cut, Right Hand Thread with 45° Right Hand Spiral Flute
  • Spiral Flute Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • DIN Length USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
29
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
G0082
Thread Size
2-56 0.0860
Number Of Flutes
2
Helix Angle
45°
Type Of Tap
CNC Tap
Thread Direction
Right Hand
Thread Limit
H2
Thread Type
UN
Tap Shank Type
DIN Length USCTI Shank CNC Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
Bright Finish
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Primary Application
General Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
G0
Style
Modified Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
YG TAP GENERAL
Size
0.0860" 2-56 DIN LENGTH
Type
CNC Tap, DIN Length
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
